Please send RFQ , we will respond immediately.

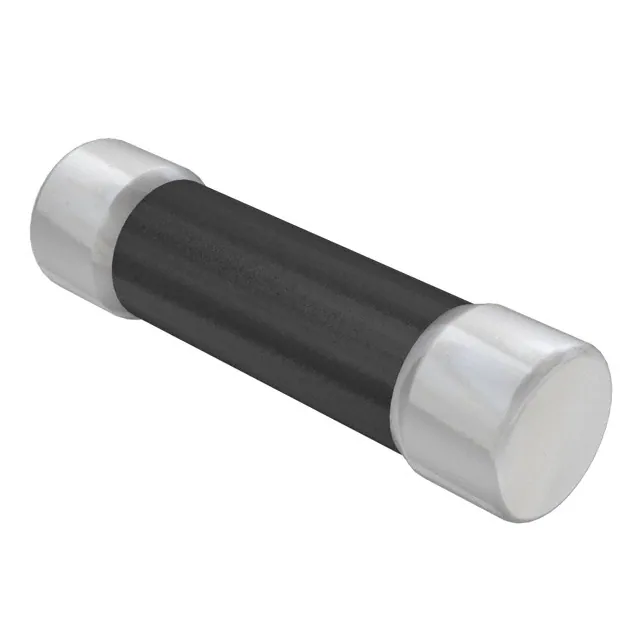

| Part Number | 0SPF008.T | 0SPF001.T | 0SPF002.T | 0SPF003.T | 0SPF004.T | 0SPF005.T | 0SPF006.T | 0SPF008.H |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 8A | 1A | 2A | 3A | 4A | 5A | 6A | 8A |
| Voltage Rating - AC | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 1 kV | 1 kV | 1 kV | 1 kV | 1 kV | 1 kV | 1 kV | 1 kV |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - |
| Approval Agency | CE, CSA, UL, VDE | CE, CSA, UL | CE, CSA, UL, VDE | CE, CSA, UL, VDE | CE, CSA, UL, VDE | CE, CSA, UL, VDE | CE, CSA, UL, VDE | CE, CSA, UL, VDE |
| Operating Temperature | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 20kA | 20kA | 20kA | 20kA | 20kA | 20kA | 20kA | 20kA |
| Package / Case | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
