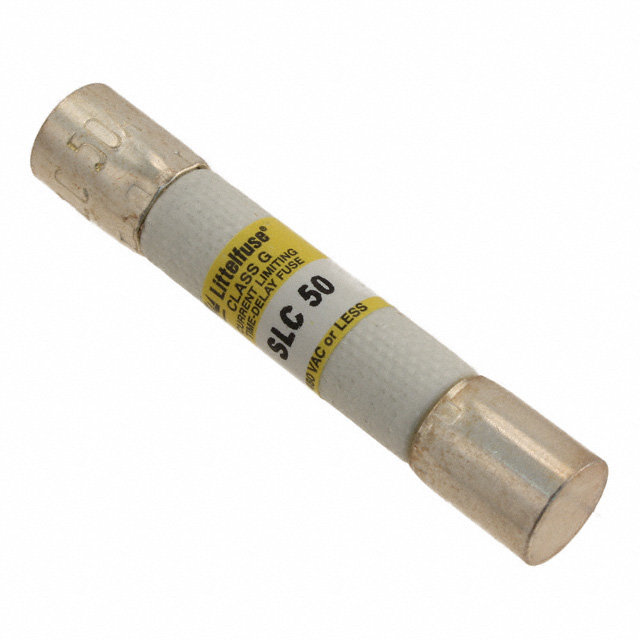

| Part Number | 0SLC050.T | 0SLC060.T | 0SLC010.T | 0SLC020.T | 0SLC030.T | 0SLC040.T |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 50A | 60A | 10A | 20A | 30A | 40A |
| Voltage Rating - AC | 480 V | 480 V | 600 V | 600 V | 480 V | 480 V |
| Voltage Rating - DC | 170 V | 170 V | 170 V | 170 V | 170 V | 170 V |
| Response Time | Medium Blow | Medium Blow | Medium Blow | Medium Blow | Medium Blow | Medium Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - | - |
| Class | G | G | G | G | G | G |
| Approval Agency | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL |
| Operating Temperature | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 100kA AC, 10kA DC | 100kA AC, 10kA DC | 100kA AC, 10kA DC | 100kA AC, 10kA DC | 100kA AC, 10kA DC | 100kA AC, 10kA DC |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.406" Dia x 2.252" L (10.30mm x 57.20mm) | 0.406" Dia x 2.252" L (10.30mm x 57.20mm) | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) | 0.406" Dia x 1.406" L (10.30mm x 35.70mm) | 0.406" Dia x 1.626" L (10.30mm x 41.30mm) | 0.406" Dia x 2.252" L (10.30mm x 57.20mm) |
