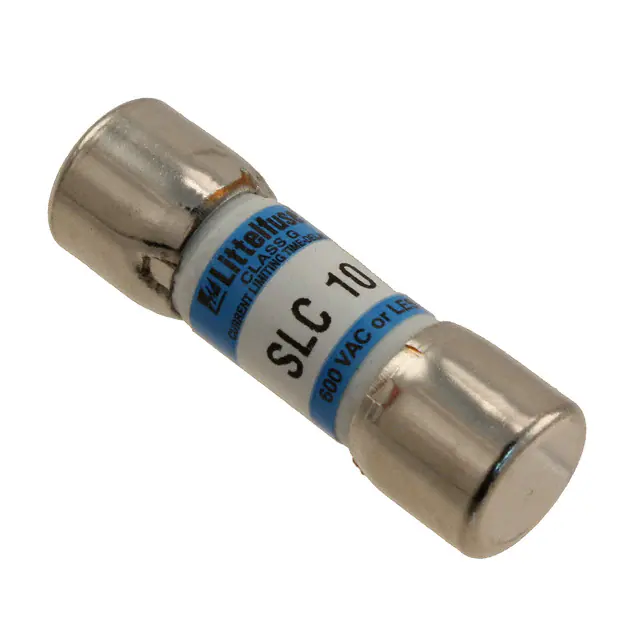

| Part Number | 0SLC001.T | 0SLC002.T | 0SLC005.T | 0SLC004.T | 0SLC008.T | 0SLC006.T | 0SLC003.T |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 1A | 2A | 5A | 4A | 8A | 6A | 3A |
| Voltage Rating - AC | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Voltage Rating - DC | 170 V | 170 V | 170 V | 170 V | 170 V | 170 V | 170 V |
| Response Time | Medium Blow | Medium Blow | Medium Blow | Medium Blow | Medium Blow | Medium Blow | Medium Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - | - | - |
| Class | G | G | G | G | G | G | G |
| Approval Agency | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL |
| Operating Temperature | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 100kA AC, 10kA DC | 100kA AC, 10kA DC | 100kA AC, 10kA DC | 100kA AC, 10kA DC | 100kA AC, 10kA DC | 100kA AC, 10kA DC | 100kA AC, 10kA DC |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) |
