Please send RFQ , we will respond immediately.

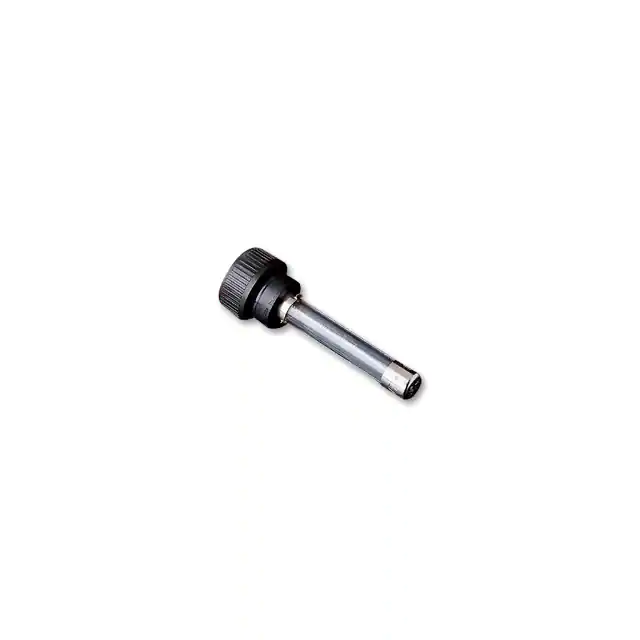

| Part Number | 0LGR005.V | 0LGR007.V | 0LGR009.V | 0LGR006.V | 0LGR008.V | 0LGR015.V | 0LGR001.V | 0LGR002.V | 0LGR003.V | 0LGR004.V | 0LGR005.H | 0LGR005.U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 5A | 7A | 9A | 6A | 8A | 15A | 1A | 2A | 3A | 4A | 5A | 5A |
| Voltage Rating - AC | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Voltage Rating - DC | - | - | - | - | - | - | - | - | - | - | - | - |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - | - | - | - | - |
| Approval Agency | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL |
| Operating Temperature | - | - | - | - | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA |
| Package / Case | In-Line | In-Line | In-Line | In-Line | In-Line | In-Line | In-Line | In-Line | In-Line | In-Line | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) |
