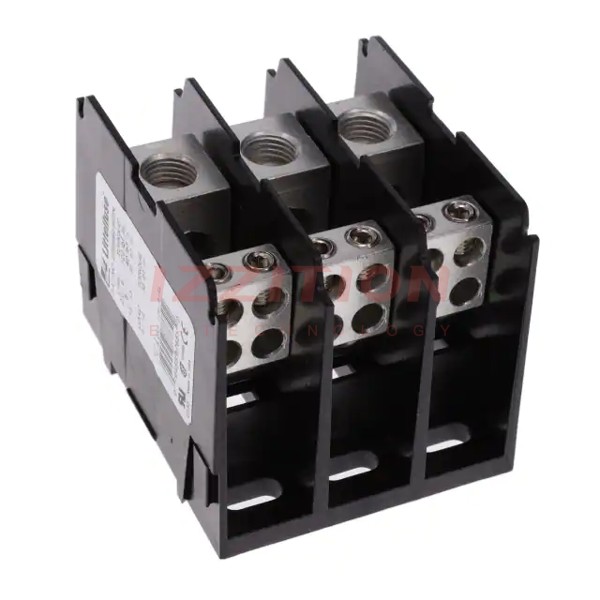

| Part Number | 0LD25803ZXDIN | 0LD25703ZXDIN |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Power Distribution Block | Power Distribution Block |
| Number of Poles | 3 | 3 |
| Line Side Connections Per Pole | 1 | 1 |
| Load Side Connections Per Pole | 6 | 4 |
| Line Side Connection Type | Screw Connection | Screw Connection |
| Load Side Connection Type | Screw Connection | Screw Connection |
| Line Side Wire/Stud Size | 2/0 - #14CU/AL | 2/0 - #14CU/AL |
| Load Side Wire/Stud Size | 4 - #14CU/AL | 4 - #14CU/AL |
| Voltage - Rated | 600 V | 600 V |
| Current Rating (Amps) | 175 A | 175 A |
