Please send RFQ , we will respond immediately.

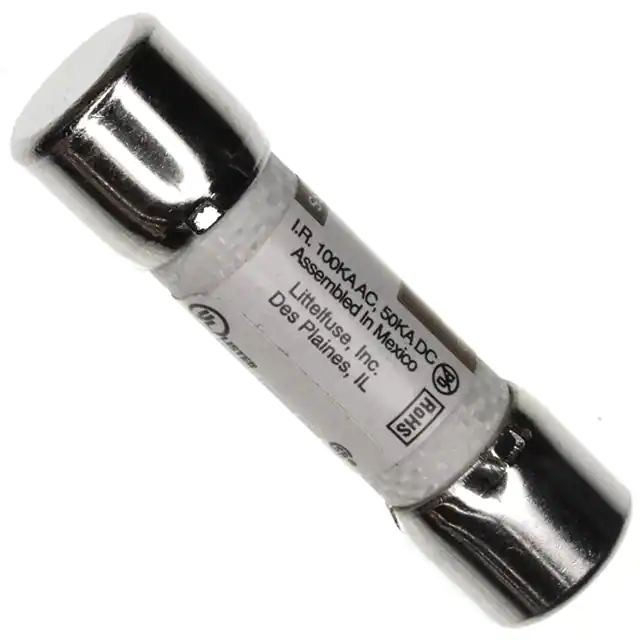

| Part Number | 0KLK002.T | 0KLK003.T | 0KLK008.T | 0KLK005.T | 0KLK006.T | 0KLK004.T | 0KLK012.T | 0KLK009.T | 0KLK002.TS | 0KLK007.T | 0KLK001.T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 2A | 3A | 8A | 5A | 6A | 4A | 12A | 9A | 2A | 7A | 1A |
| Voltage Rating - AC | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Voltage Rating - DC | 500 V | 500 V | 500 V | 500 V | 500 V | 500 V | 500 V | 500 V | 500 V | 500 V | 500 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - | - | - | - |
| Approval Agency | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL |
| Operating Temperature | - | - | - | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC |
| Package / Case | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
