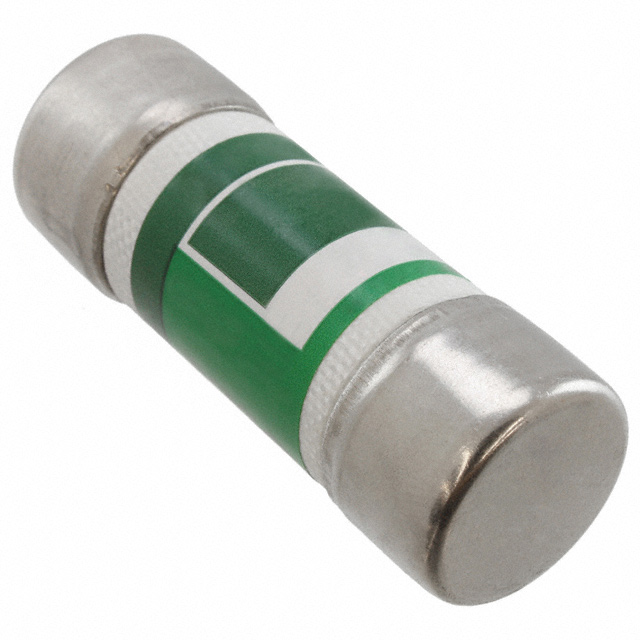

| Part Number | 0JTD020.T | 0JTD030.T | 0JTD040.T | 0JTD050.T | 0JTD060.T | 0JTD010.T |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 20A | 30A | 40A | 50A | 60A | 10A |
| Voltage Rating - AC | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Voltage Rating - DC | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Response Time | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow |
| Applications | Transformer Protection | Transformer Protection | Transformer Protection | Transformer Protection | Transformer Protection | Transformer Protection |
| Features | - | - | - | - | - | - |
| Class | J | J | J | J | J | J |
| Approval Agency | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL |
| Operating Temperature | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | 1.063" Dia x 2.374" L (27.00mm x 60.30mm) | 1.063" Dia x 2.374" L (27.00mm x 60.30mm) | 1.063" Dia x 2.374" L (27.00mm x 60.30mm) | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) |
