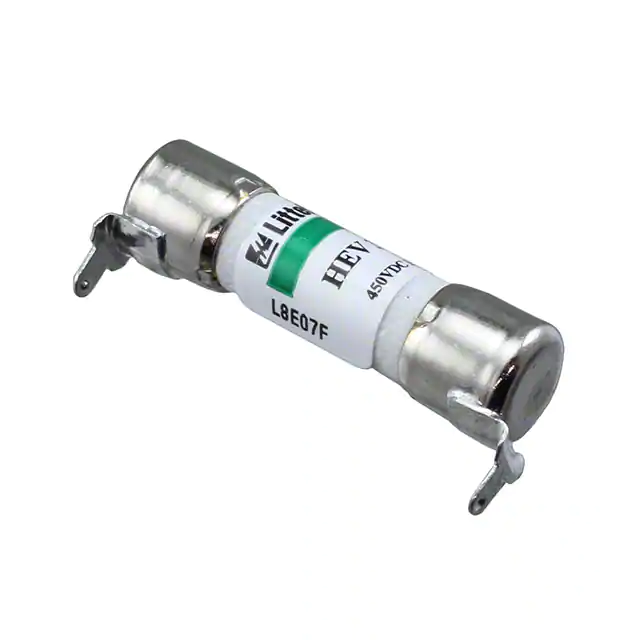

| Part Number | 0HEV040.ZXPCBL | 0HEV010.ZXPCBL | 0HEV020.ZXPCBL | 0HEV030.ZXPCBL |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 40A | 10A | 20A | 30A |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 425 V | 450 V | 450 V | 450 V |
| Response Time | - | - | - | - |
| Applications | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks |
| Features | - | - | - | - |
| Class | - | - | - | - |
| Approval Agency | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 10kA | 10kA | 10kA | 10kA |
| Package / Case | 5AG, 10mm x 38mm w/PC Pins (Midget) | 5AG, 10mm x 38mm w/PC Pins (Midget) | 5AG, 10mm x 38mm w/PC Pins (Midget) | 5AG, 10mm x 38mm w/PC Pins (Midget) |
| Size / Dimension | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) |
