Please send RFQ , we will respond immediately.

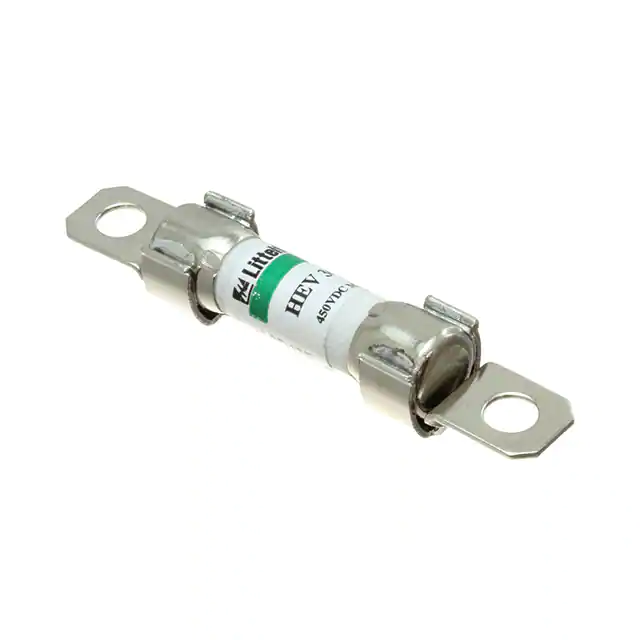

| Part Number | 0HEV020.ZXBD | 0HEV030.ZXBD | 0HEV010.ZXBD |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 20A | 30A | 10A |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 450 V | 450 V | 450 V |
| Response Time | - | - | - |
| Applications | Lift Trucks | Lift Trucks | Lift Trucks |
| Features | - | - | - |
| Class | - | - | - |
| Approval Agency | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 10kA | 10kA | 10kA |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 0.469" Dia x 2.559" L (11.90mm x 65.00mm) | 0.469" Dia x 2.559" L (11.90mm x 65.00mm) | 0.469" Dia x 2.559" L (11.90mm x 65.00mm) |
