Please send RFQ , we will respond immediately.

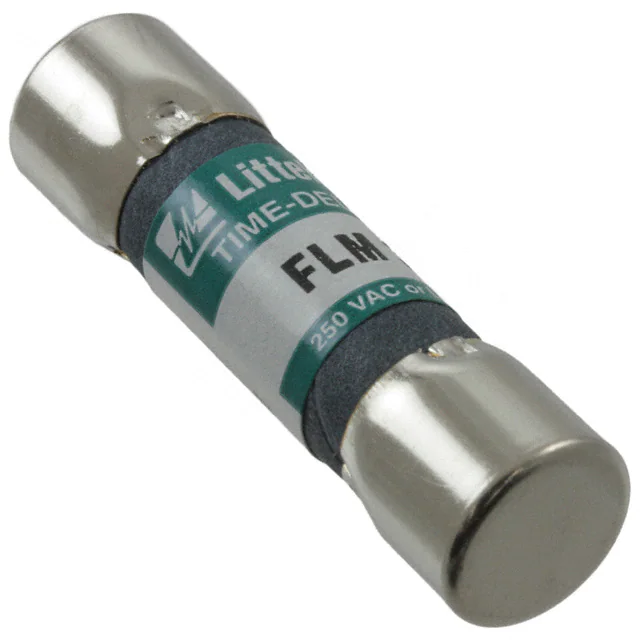

| Part Number | 0FLM03.5T | 0FLM04.5T | 0FLQ03.5T | 0FLA03.5T | 0FLM01.5T | 0FLM02.5T | 0FLM03.2T |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 3.5A | 4.5A | 3.5A | 3.5A | 1.5A | 2.5A | 3.2A |
| Voltage Rating - AC | 250 V | 250 V | 500 V | 125 V | 250 V | 250 V | 250 V |
| Voltage Rating - DC | 125 V | 125 V | 300 V | - | 125 V | 125 V | 125 V |
| Response Time | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow |
| Applications | Motor Protection | Motor Protection | Transformer Protection | Electrical, Industrial | Motor Protection | Motor Protection | Motor Protection |
| Features | - | - | - | Indicating | - | - | - |
| Class | - | - | - | - | - | - | - |
| Approval Agency | CSA, PSE, QPL, UL | CSA, PSE, QPL, UL | CSA, UL | UL | CSA, PSE, QPL, UL | CSA, PSE, QPL, UL | CSA, PSE, QPL, UL |
| Operating Temperature | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA |
| Package / Case | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
