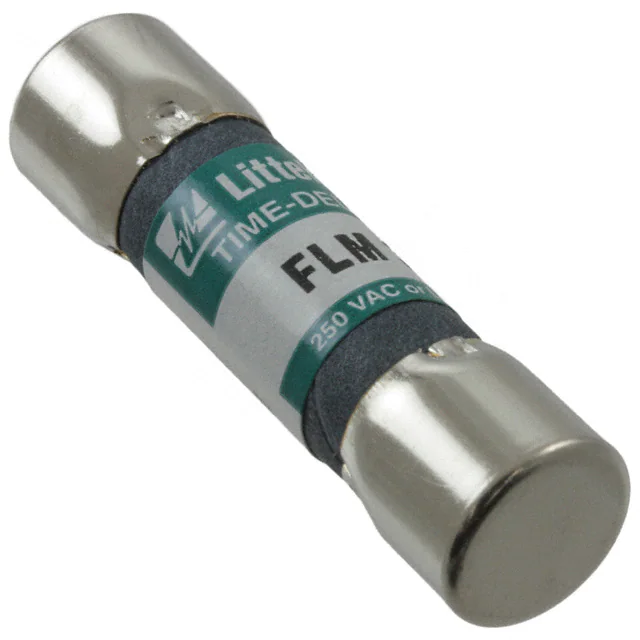

| Part Number | 0FLM020.T | 0FLM030.T | 0FLM025.T | 0FLQ020.T | 0FLM010.T |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 20A | 30A | 25A | 20A | 10A |
| Voltage Rating - AC | 250 V | 250 V | 250 V | 500 V | 250 V |
| Voltage Rating - DC | 125 V | 125 V | 125 V | 300 V | 125 V |
| Response Time | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow |
| Applications | Motor Protection | Motor Protection | Motor Protection | Transformer Protection | Motor Protection |
| Features | - | - | - | - | - |
| Class | - | - | - | - | - |
| Approval Agency | CSA, PSE, QPL, UL | CSA, PSE, QPL, UL | CSA, PSE, QPL, UL | CSA, UL | CSA, PSE, QPL, UL |
| Operating Temperature | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 10kA | 10kA | 10kA | 10kA | 10kA |
| Package / Case | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
