Please send RFQ , we will respond immediately.

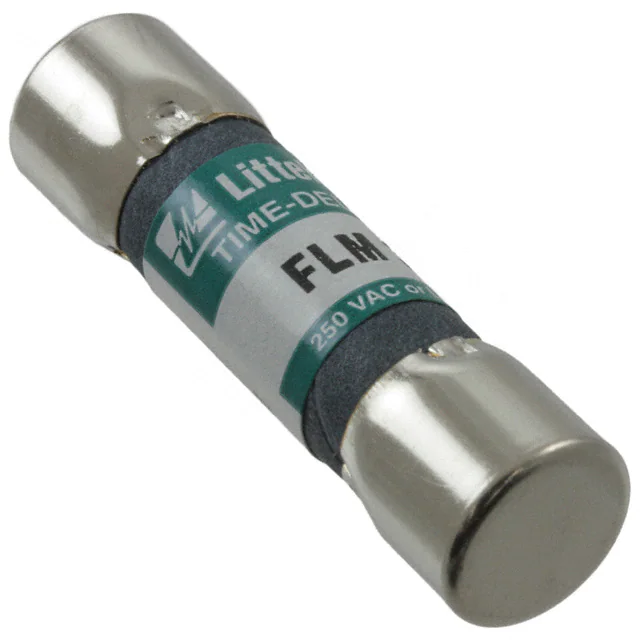

| Part Number | 0FLM006.T | 0FLM008.T | 0FLQ006.T | 0FLM007.T | 0FLM009.T | 0FLA006.T | 0FLM001.T | 0FLM002.T | 0FLM003.T | 0FLM004.T | 0FLM005.T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 6A | 8A | 6A | 7A | 9A | 6A | 1A | 2A | 3A | 4A | 5A |
| Voltage Rating - AC | 250 V | 250 V | 500 V | 250 V | 250 V | 125 V | 250 V | 250 V | 250 V | 250 V | 250 V |
| Voltage Rating - DC | 125 V | 125 V | 300 V | 125 V | 125 V | - | 125 V | 125 V | 125 V | 125 V | 125 V |
| Response Time | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow |
| Applications | Motor Protection | Motor Protection | Transformer Protection | Motor Protection | Motor Protection | Electrical, Industrial | Motor Protection | Motor Protection | Motor Protection | Motor Protection | Motor Protection |
| Features | - | - | - | - | - | Indicating | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - | - | - | - |
| Approval Agency | CSA, PSE, QPL, UL | CSA, PSE, QPL, UL | CSA, UL | CSA, PSE, QPL, UL | CSA, PSE, QPL, UL | UL | CSA, PSE, QPL, UL | CSA, PSE, QPL, UL | CSA, PSE, QPL, UL | CSA, PSE, QPL, UL | CSA, PSE, QPL, UL |
| Operating Temperature | - | - | - | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA |
| Package / Case | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
