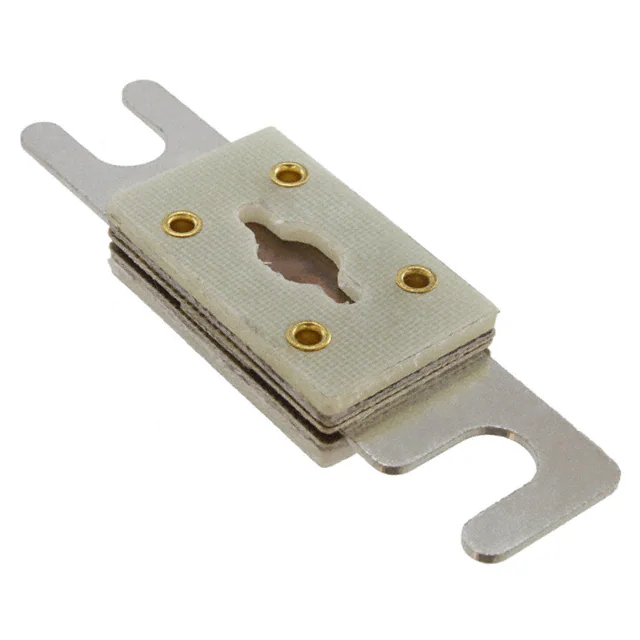

| Part Number | 0CNN125.V | 0CNN125E.V | 0CNN175.V | 0CNN225.V | 0CNN325.V |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip | Fuse Strip |
| Current Rating (Amps) | 125A | 125A | 175A | 225A | 325A |
| Voltage Rating - AC | 125 V | 125 V | 125 V | 125 V | 125 V |
| Voltage Rating - DC | 48 V | 80 V | 48 V | 48 V | 48 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks | Lift Trucks |
| Features | Indicating | Indicating | Indicating | Indicating | Indicating |
| Class | - | - | - | - | - |
| Approval Agency | UR | cURus | UR | UR | UR |
| Operating Temperature | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 2.5kA | 2.5kA | 2.5kA | 2.5kA | 2.5kA |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | - | - | - | - | - |
