Please send RFQ , we will respond immediately.

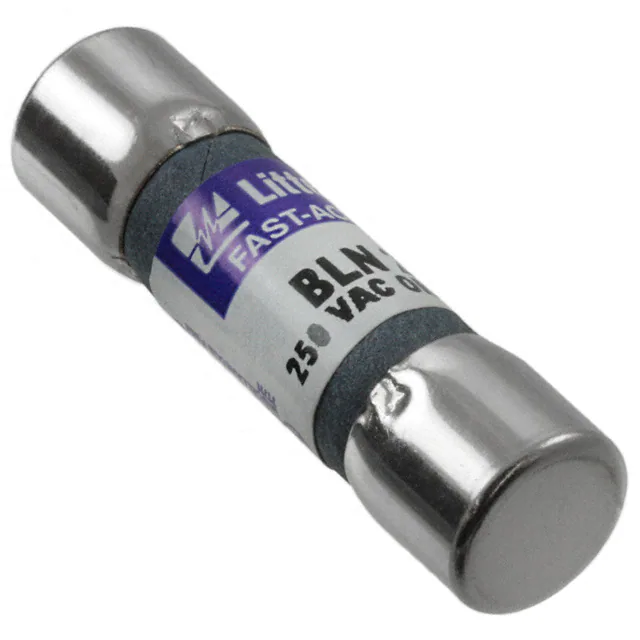

| Part Number | 0BLN008.T | 0BLS008.T | 0BLF008.T | 0BLN001.T | 0BLN002.T | 0BLN003.T | 0BLN004.T | 0BLN005.T | 0BLN006.T |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 8A | 8A | 8A | 1A | 2A | 3A | 4A | 5A | 6A |
| Voltage Rating - AC | 250 V | 250 V | 250 V | 250 V | 250 V | 250 V | 250 V | 250 V | 250 V |
| Voltage Rating - DC | - | - | - | - | - | - | - | - | - |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - | - |
| Approval Agency | CSA, PSE, UR | CSA, UL | CSA, UR | CSA, PSE, UR | CSA, PSE, UR | CSA, PSE, UR | CSA, PSE, UR | CSA, PSE, UR | CSA, PSE, UR |
| Operating Temperature | - | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA |
| Package / Case | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.375" L (10.31mm x 34.93mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
