Please send RFQ , we will respond immediately.

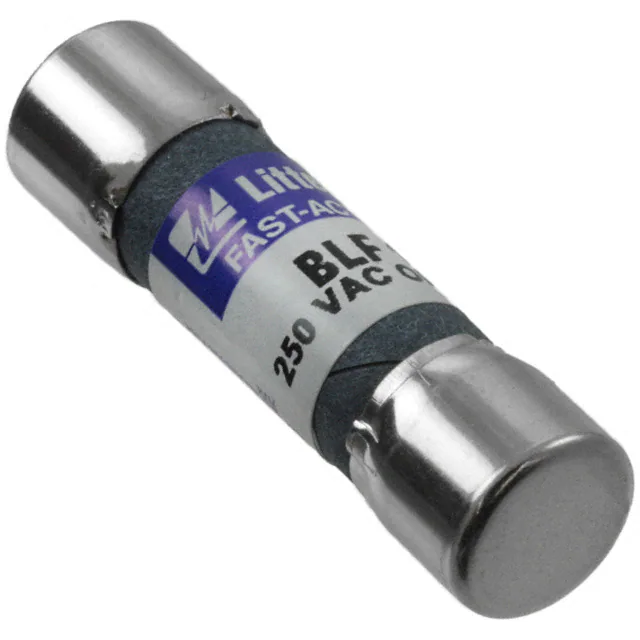

| Part Number | 0BLF001.T | 0BLF003.T | 0BLF002.T | 0BLF005.T | 0BLN001.T | 0BLS001.T | 0BLF008.T | 0BLF007.T | 0BLF009.T | 0BLF006.T | 0BLF004.T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 1A | 3A | 2A | 5A | 1A | 1A | 8A | 7A | 9A | 6A | 4A |
| Voltage Rating - AC | 250 V | 250 V | 250 V | 250 V | 250 V | 600 V | 250 V | 250 V | 250 V | 250 V | 250 V |
| Voltage Rating - DC | - | - | - | - | - | - | - | - | - | - | - |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - | - | - | - |
| Approval Agency | CSA, UR | CSA, UR | CSA, UR | CSA, UR | CSA, PSE, UR | CSA, UL | CSA, UR | CSA, UR | CSA, UR | CSA, UR | CSA, UR |
| Operating Temperature | - | - | - | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA |
| Package / Case | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.375" L (10.31mm x 34.93mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
