Littelfuse Inc.-0874.300MRET1P - Fuses Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Fuse Type:	Cartridge, Ceramic
Current Rating (Amps):	300 mA
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Response Time:	Fast Blow
Package / Case:	Cartridge, Non-Standard (Axial)
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	0.039
Approval Agency:	cULus
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.142" Dia x 0.394" L (3.60mm x 10.00mm)

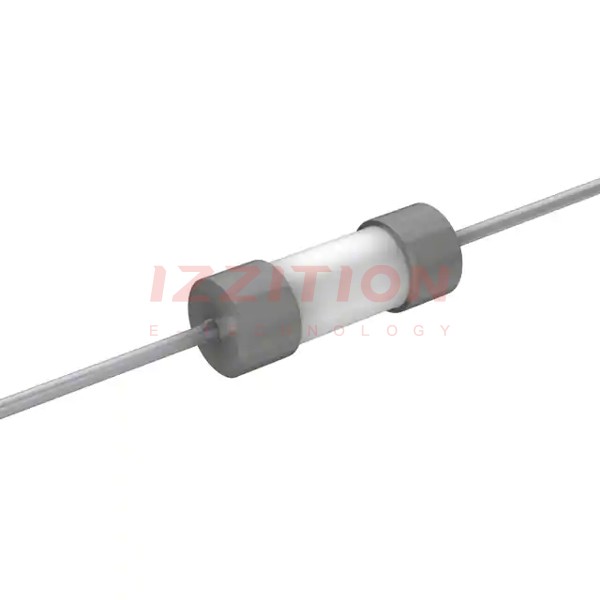

Littelfuse Inc. 0874.300MRET1P
