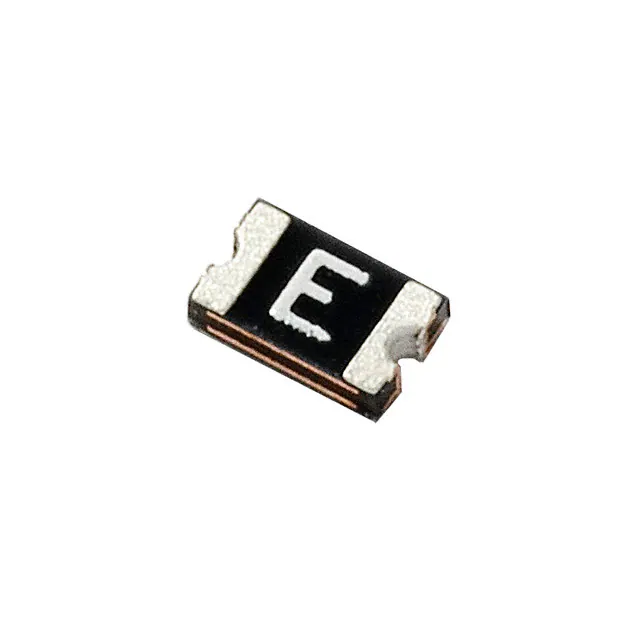

| Part Number | 0805L260SLTHYR | 0805L200SLTHYR |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V |
| Current - Max | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 2.6 A | 2 A |
| Current - Trip (It) | 5 A | 4 A |
| Time to Trip | 4 s | 1 s |
| Resistance - Initial (Ri) (Min) | 3 mOhms | 5 mOhms |
| Resistance - Post Trip (R1) (Max) | 35 mOhms | 45 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric), Concave | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.083" L x 0.053" W (2.10mm x 1.35mm) | 0.083" L x 0.053" W (2.10mm x 1.35mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.030" (0.75mm) | 0.030" (0.75mm) |
| Lead Spacing | - | - |
