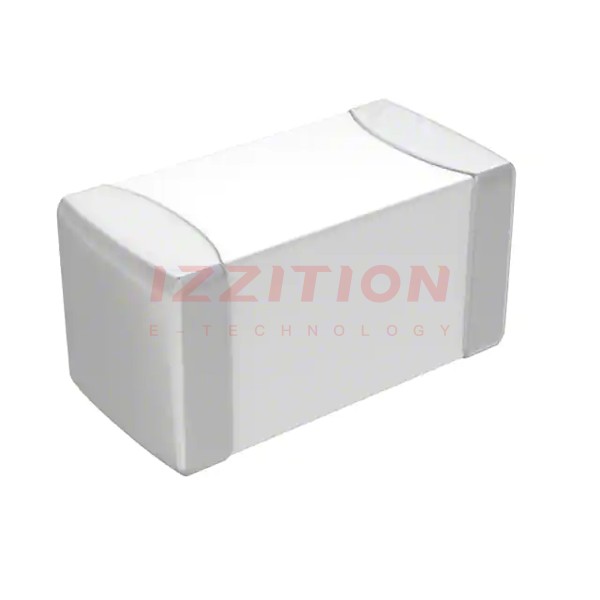

Littelfuse Inc.-0603SFF250FM/32-2 - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	2.5 A
Voltage Rating - AC:	-
Voltage Rating - DC:	32 V
Response Time:	Fast Blow
Package / Case:	0603 (1608 Metric)
Breaking Capacity @ Rated Voltage:	35A
Melting I²t:	0.115
Approval Agency:	UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.063" L x 0.032" W x 0.037" H (1.60mm x 0.80mm x 0.95mm)

Littelfuse Inc. 0603SFF250FM/32-2
