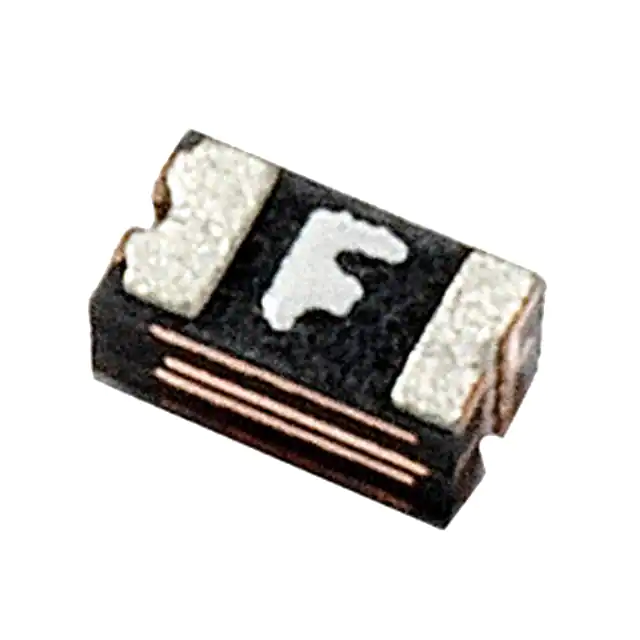

| Part Number | 0603L200SLYR | 0603L300SLYR | 0603L100SLYR |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V | 6V |
| Current - Max | 50 A | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 2 A | 3 A | 1 A |
| Current - Trip (It) | 4 A | 6 A | 1.8 A |
| Time to Trip | 1 s | 5 s | 300 ms |
| Resistance - Initial (Ri) (Min) | 5 mOhms | 3 mOhms | 40 mOhms |
| Resistance - Post Trip (R1) (Max) | 50 mOhms | 30 mOhms | 120 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | - | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave | 0603 (1608 Metric), Concave | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.030" (0.75mm) |
| Lead Spacing | - | - | - |
