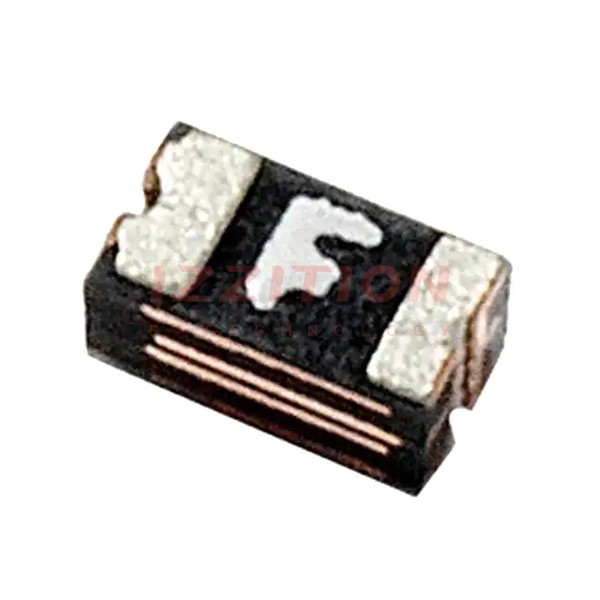

| Part Number | 0603L002/60YR | 0603L001/60YR |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 60V | 60V |
| Current - Max | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 20 mA | 10 mA |
| Current - Trip (It) | 60 mA | 50 mA |
| Time to Trip | 1 s | 1 s |
| Resistance - Initial (Ri) (Min) | 12 Ohms | 15 Ohms |
| Resistance - Post Trip (R1) (Max) | 70 Ohms | 100 Ohms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Lead Spacing | - | - |
