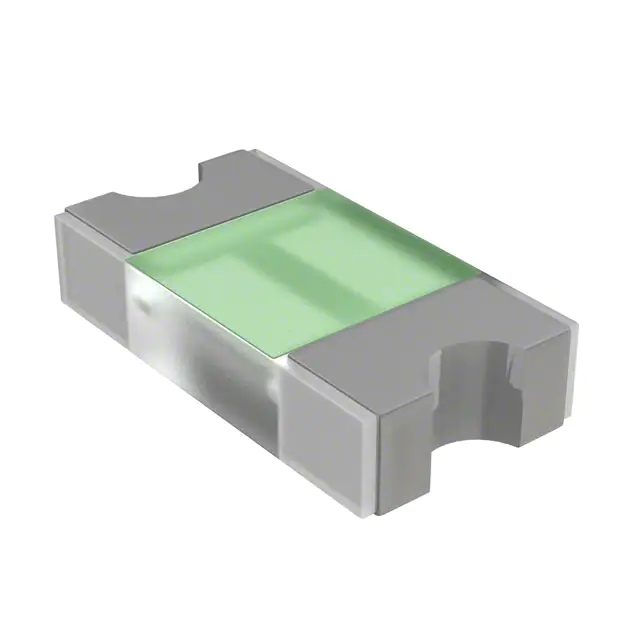

Littelfuse Inc.-0494005.NRHF - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	5 A
Voltage Rating - AC:	32 V
Voltage Rating - DC:	32 V
Response Time:	Fast Blow
Package / Case:	0603 (1608 Metric), Concave
Breaking Capacity @ Rated Voltage:	35A
Melting I²t:	0.9
Approval Agency:	CSA, UR
Operating Temperature:	-50°C ~ 90°C
Color:	-
Size / Dimension:	0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm)

Littelfuse Inc. 0494005.NRHF
