Littelfuse Inc.-0494.250NR - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	250 mA
Voltage Rating - AC:	32 V
Voltage Rating - DC:	32 V
Response Time:	Fast Blow
Package / Case:	0603 (1608 Metric)
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	0.003
Approval Agency:	CSA, UR
Operating Temperature:	-55°C ~ 90°C
Color:	-
Size / Dimension:	0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm)

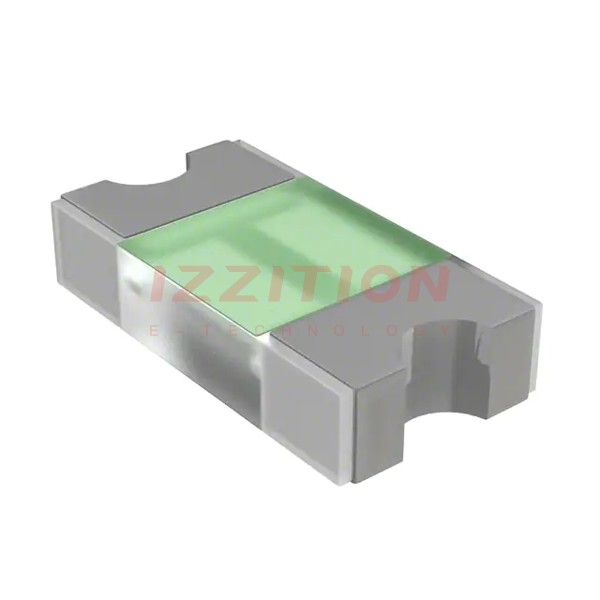

Littelfuse Inc. 0494.250NR
