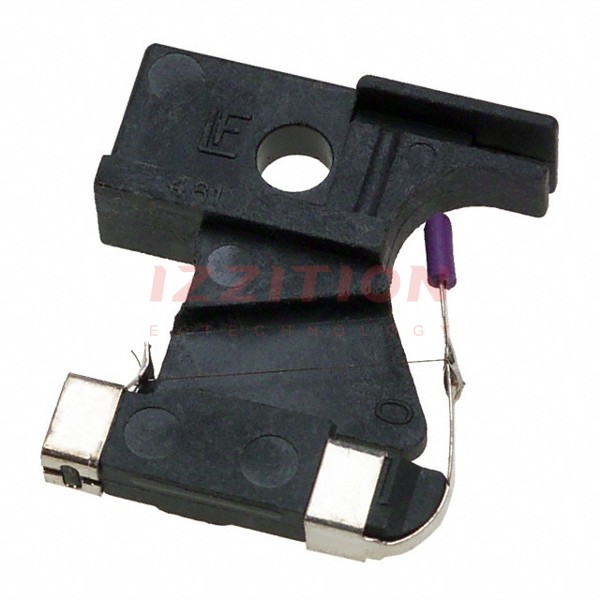

| Part Number | 0481.250HXM | 0481.750HXM | 0481.250HXL |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder |
| Fuse Type | Indicating Fuse | Indicating Fuse | Indicating Fuse |
| Current Rating (Amps) | 250mA | 750mA | 250mA |
| Voltage Rating - AC | 125 V | 125 V | 125 V |
| Voltage Rating - DC | 125 V | 125 V | 125 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow |
| Applications | Telecom | Telecom | Telecom |
| Features | Indicating | Indicating | Indicating |
| Class | - | - | - |
| Approval Agency | CSA, UR | CSA, UR | CSA, UR |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 300A | 300A | 300A |
| Package / Case | Alarm Indicator | Alarm Indicator | Alarm Indicator |
| Size / Dimension | 0.665" L x 0.228" W x 0.772" H (16.90mm x 5.80mm x 19.60mm) | 0.665" L x 0.228" W x 0.772" H (16.90mm x 5.80mm x 19.60mm) | 0.665" L x 0.228" W x 0.772" H (16.90mm x 5.80mm x 19.60mm) |
