Littelfuse Inc.-047606.3MRSN - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	6.3 A
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Response Time:	Fast Blow
Package / Case:	2-SMD, Square End Block
Breaking Capacity @ Rated Voltage:	100A AC, 300A DC
Melting I²t:	7.5
Approval Agency:	cURus
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm)

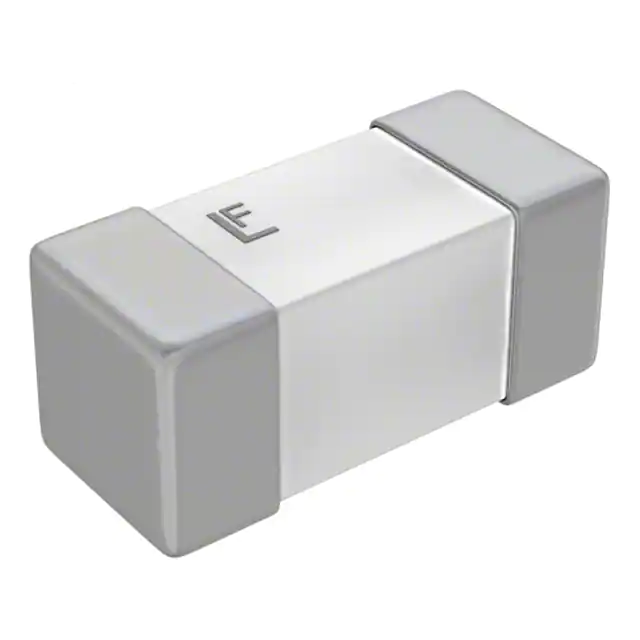

Littelfuse Inc. 047606.3MRSN
