Littelfuse Inc.-0473.375YRT1 - Fuses Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	375 mA
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Response Time:	Slow Blow
Package / Case:	Axial
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	0.085
Approval Agency:	CSA, UR
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.135" Dia x 0.280" L (3.43mm x 7.11mm)

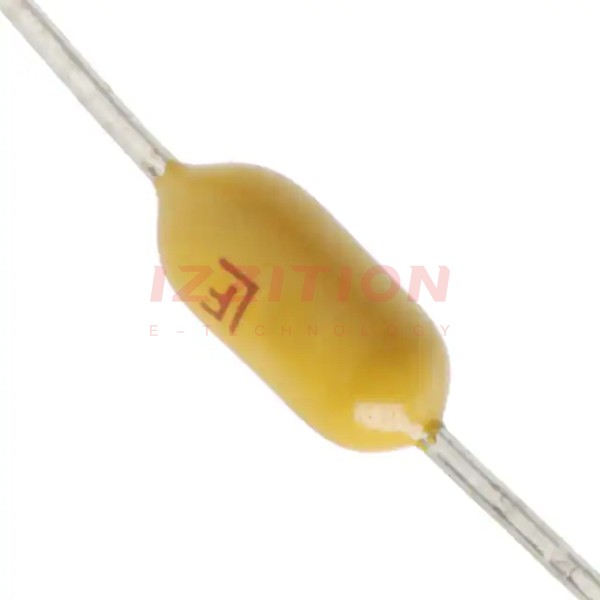

Littelfuse Inc. 0473.375YRT1
