Littelfuse Inc.-0468001.NR - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	1 A
Voltage Rating - AC:	63 V
Voltage Rating - DC:	63 V
Response Time:	Slow Blow
Package / Case:	1206 (3216 Metric)
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	0.127
Approval Agency:	CSA, UL
Operating Temperature:	-55°C ~ 90°C
Color:	-
Size / Dimension:	0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm)

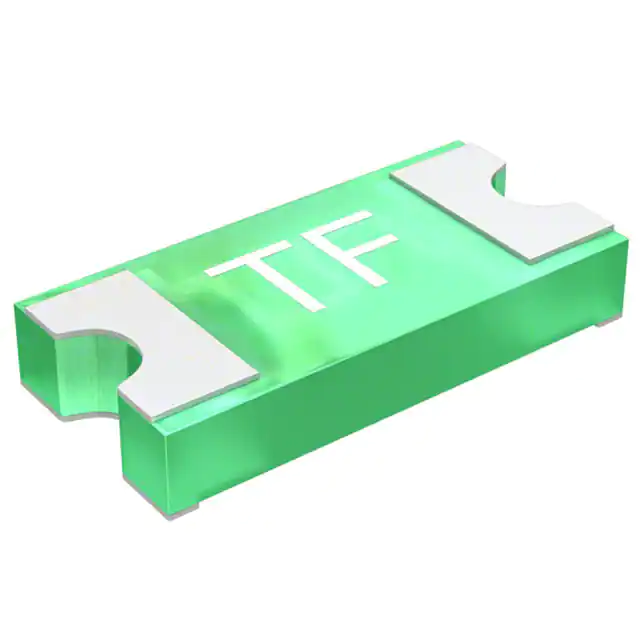

Littelfuse Inc. 0468001.NR
