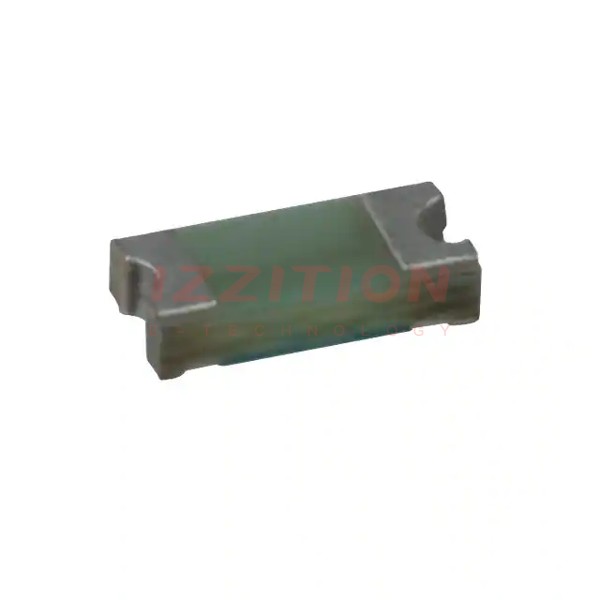

Littelfuse Inc.-0466.500NR - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	500 mA
Voltage Rating - AC:	63 V
Voltage Rating - DC:	63 V
Response Time:	Fast Blow
Package / Case:	1206 (3216 Metric)
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	0.006
Approval Agency:	CSA, UL
Operating Temperature:	-55°C ~ 90°C
Color:	-
Size / Dimension:	0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm)

Littelfuse Inc. 0466.500NR
