Littelfuse Inc.-0460005.ER - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	5 A
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Response Time:	Slow Blow
Package / Case:	2-SMD, J-Lead
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	54.8
Approval Agency:	CSA, PSE, UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm)

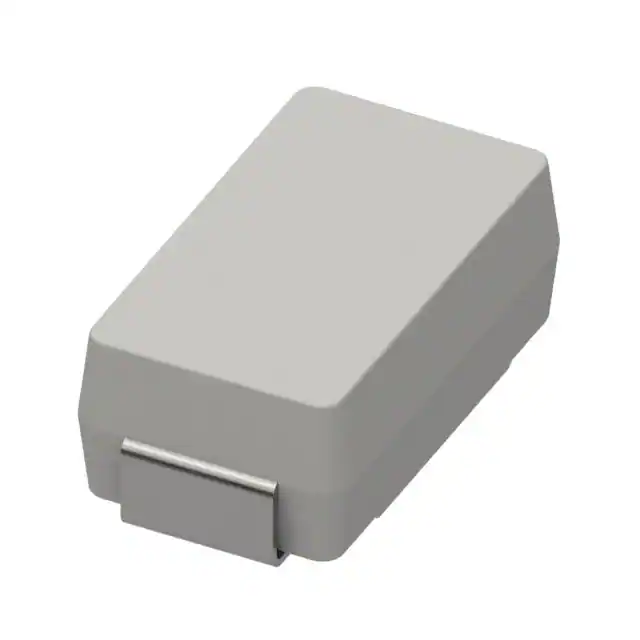

Littelfuse Inc. 0460005.ER
