Littelfuse Inc.-0459003.ER - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	3 A
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Response Time:	Fast Blow
Package / Case:	2-SMD, J-Lead
Breaking Capacity @ Rated Voltage:	50A AC, 300A DC
Melting I²t:	1.23
Approval Agency:	CSA, UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm)

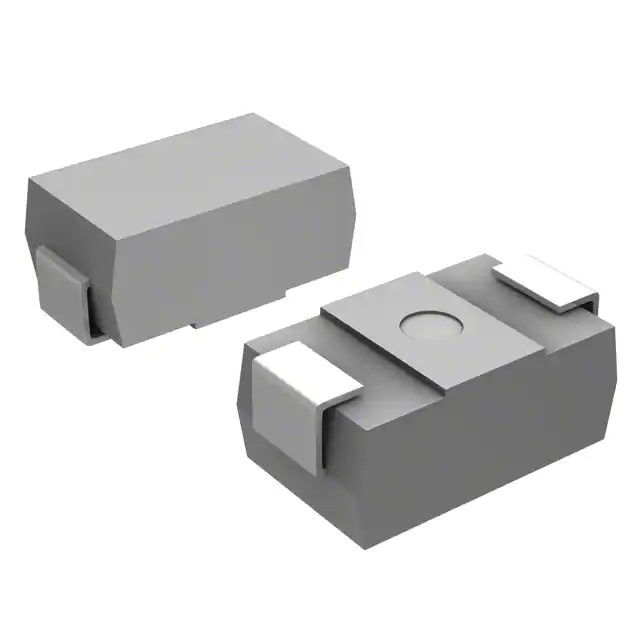

Littelfuse Inc. 0459003.ER
