Littelfuse Inc.-0456060.DRSDE - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	60 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	80 V
Response Time:	Fast Blow
Package / Case:	2-SMD, Square End Block
Breaking Capacity @ Rated Voltage:	150A AC, 600A DC
Melting I²t:	4260
Approval Agency:	cURus
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm)

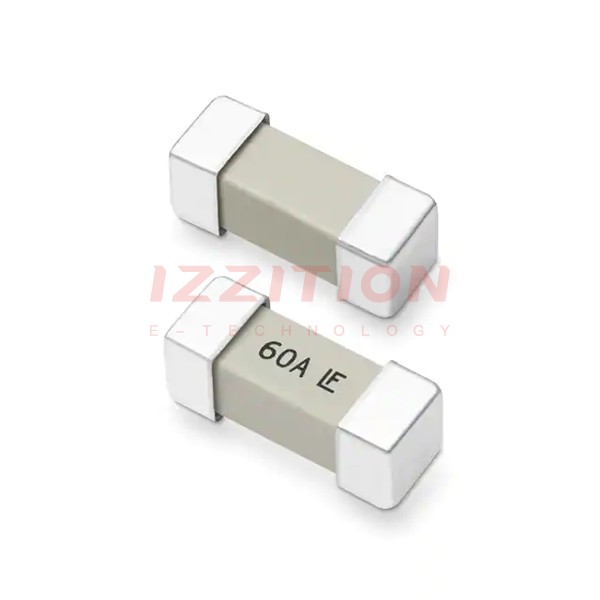

Littelfuse Inc. 0456060.DRSDE
