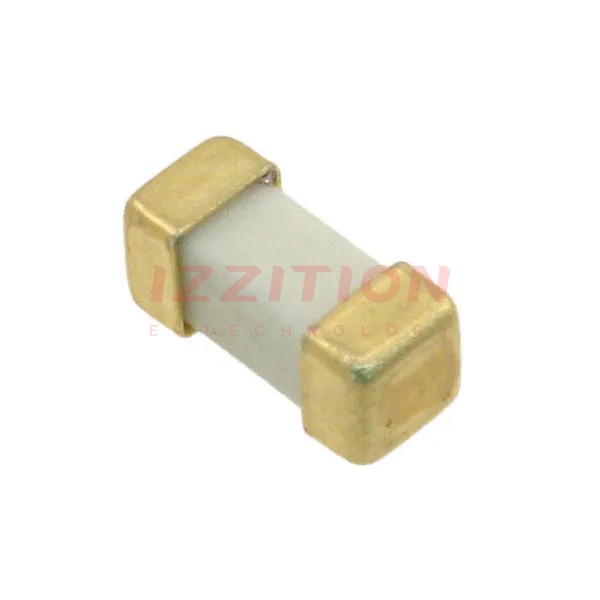

Littelfuse Inc.-0449001.MR - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	1 A
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Response Time:	Slow Blow
Package / Case:	2-SMD, Square End Block
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	1.76
Approval Agency:	cULus, PSE
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm)

Littelfuse Inc. 0449001.MR
