Littelfuse Inc.-0448015.MR - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	15 A
Voltage Rating - AC:	85 V
Voltage Rating - DC:	85 V
Response Time:	Fast Blow
Package / Case:	2-SMD, Square End Block
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	96.1
Approval Agency:	CSA, UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm)

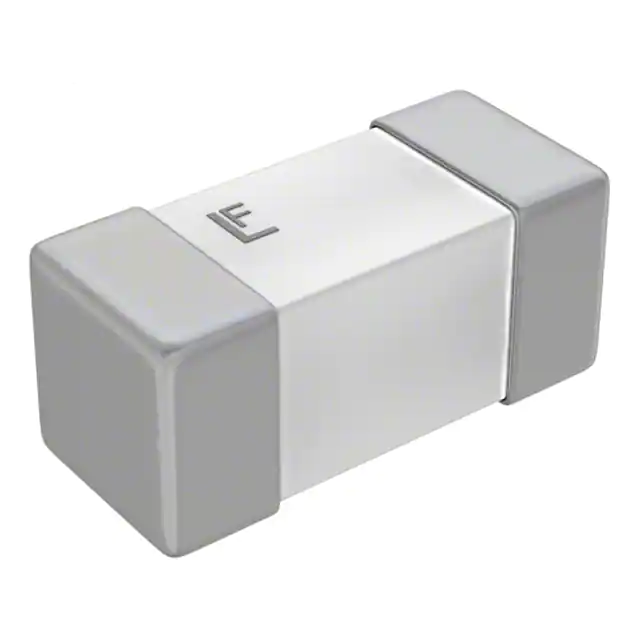

Littelfuse Inc. 0448015.MR
