Littelfuse Inc.-044707.5Y - Fuses Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	7.5 A
Voltage Rating - AC:	350 V
Voltage Rating - DC:	125 V
Response Time:	Fast Blow
Package / Case:	Radial, Box
Breaking Capacity @ Rated Voltage:	100A AC, 50A DC
Melting I²t:	68
Approval Agency:	CSA, UL
Operating Temperature:	-40°C ~ 125°C
Color:	-
Size / Dimension:	0.430" L x 0.150" W x 0.404" H (10.92mm x 3.81mm x 10.26mm)

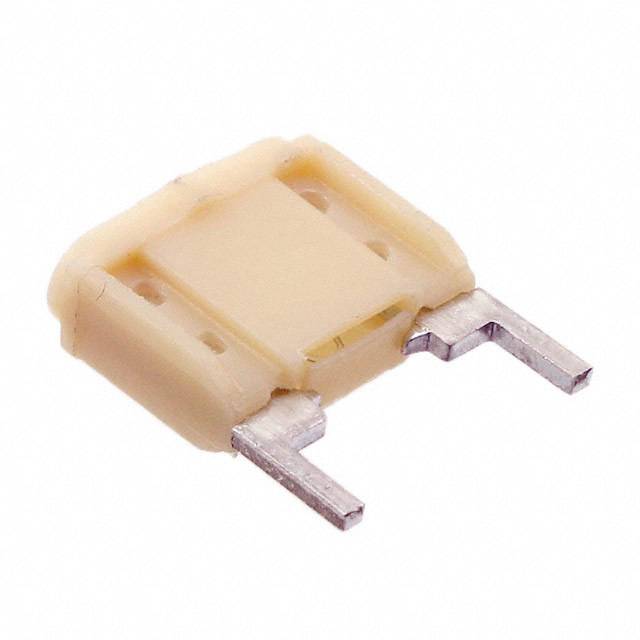

Littelfuse Inc. 044707.5Y
