Littelfuse Inc.-044301.5DR - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	1.5 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Response Time:	Slow Blow
Package / Case:	2-SMD, Square End Block
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	14.72
Approval Agency:	cULus
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm)

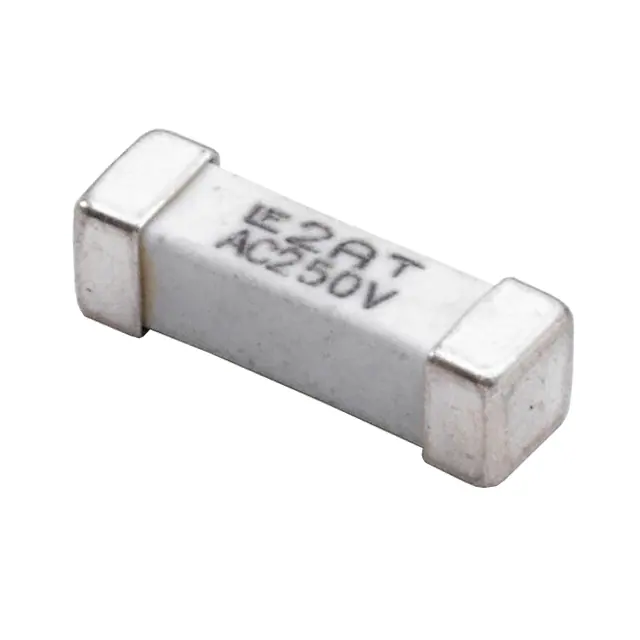

Littelfuse Inc. 044301.5DR
