0440.375WR
  • Share:

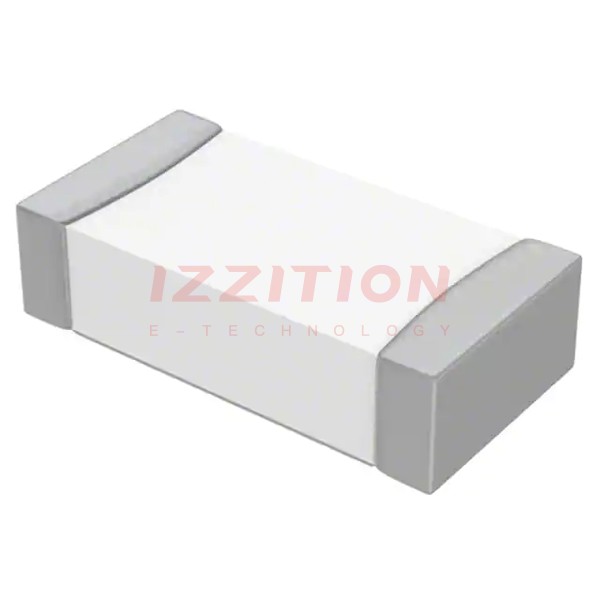

Littelfuse Inc. 0440.375WR

Manufacturer No:
0440.375WR
Manufacturer:
Littelfuse Inc.
Package:
Tape & Reel (TR)
Datasheet:
0440.375WR Datasheet
ECAD Model:
-
Description:
FUSE BOARD MNT 375MA 125VAC/VDC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Mounting Type:Surface Mount
Fuse Type:Board Mount (Cartridge Style Excluded)
Current Rating (Amps):375 mA
Voltage Rating - AC:125 V
Voltage Rating - DC:125 V
Response Time:Fast Blow
Package / Case:1206 (3216 Metric)
Breaking Capacity @ Rated Voltage:50A
Melting I²t:0.001455
Approval Agency:CSA, UL
Operating Temperature:-55°C ~ 150°C
Color:-
Size / Dimension:0.126" L x 0.064" W x 0.032" H (3.20mm x 1.63mm x 0.82mm)
0 Remaining View Similar

In Stock

$1.04
298

Please send RFQ , we will respond immediately.
