Littelfuse Inc.-043802.5WRGT - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	2.5 A
Voltage Rating - AC:	12 V
Voltage Rating - DC:	32 V
Response Time:	Fast Blow
Package / Case:	0603 (1608 Metric)
Breaking Capacity @ Rated Voltage:	50A AC, 50A DC
Melting I²t:	0.24
Approval Agency:	CSA, cURus
Operating Temperature:	-55°C ~ 150°C
Color:	-
Size / Dimension:	0.061" L x 0.033" W x 0.020" H (1.54mm x 0.85mm x 0.50mm)

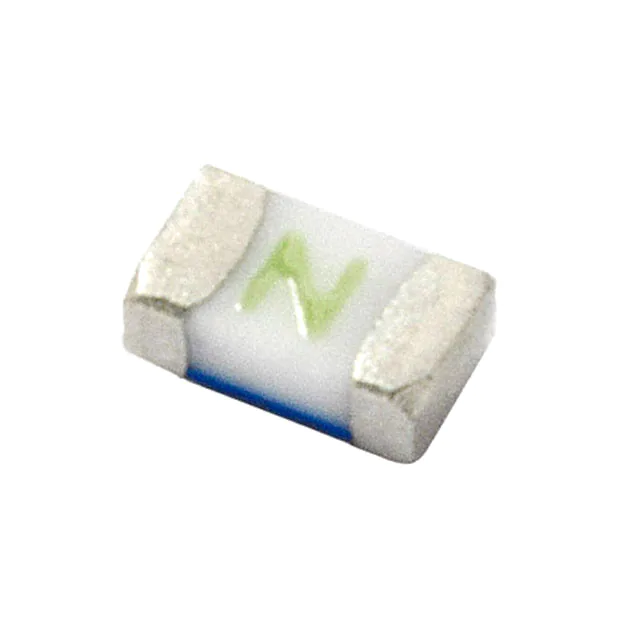

Littelfuse Inc. 043802.5WRGT
