Littelfuse Inc.-0437.500WR - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	500 mA
Voltage Rating - AC:	63 V
Voltage Rating - DC:	63 V
Response Time:	Fast Blow
Package / Case:	1206 (3216 Metric)
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	0.018
Approval Agency:	CSA, UR
Operating Temperature:	-55°C ~ 150°C
Color:	-
Size / Dimension:	0.126" L x 0.064" W x 0.032" H (3.20mm x 1.63mm x 0.82mm)

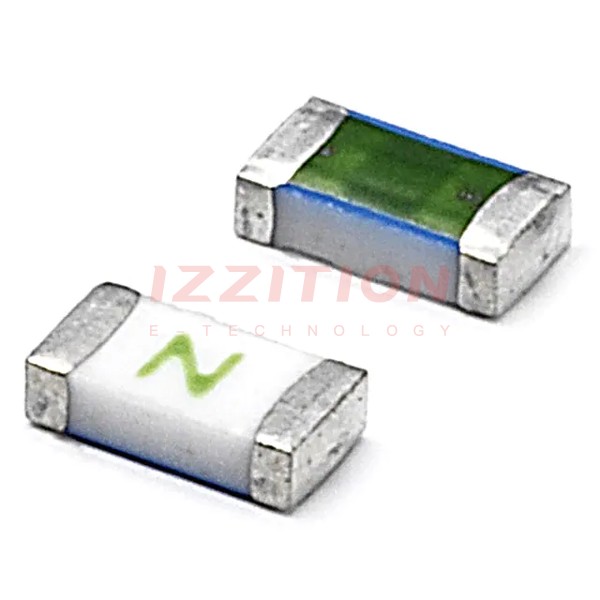

Littelfuse Inc. 0437.500WR
