Littelfuse Inc.-0435.250KR - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	250 mA
Voltage Rating - AC:	-
Voltage Rating - DC:	32 V
Response Time:	Fast Blow
Package / Case:	0402 (1005 Metric)
Breaking Capacity @ Rated Voltage:	35A
Melting I²t:	0.0025
Approval Agency:	CSA, UL
Operating Temperature:	-55°C ~ 90°C
Color:	-
Size / Dimension:	0.039" L x 0.020" W x 0.013" H (1.00mm x 0.51mm x 0.33mm)

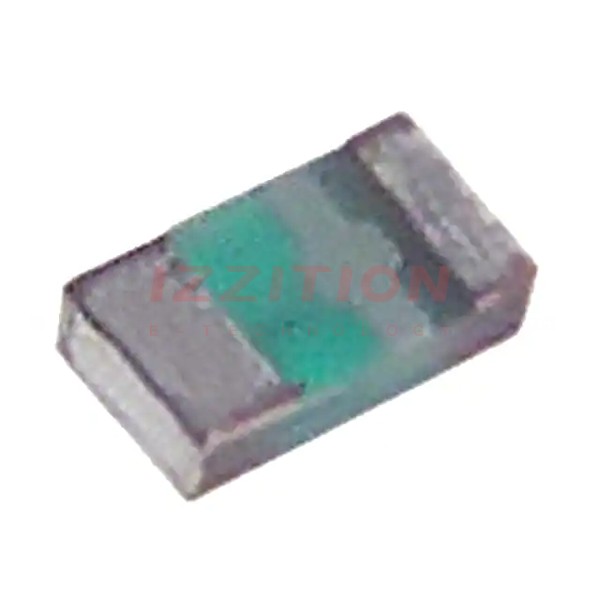

Littelfuse Inc. 0435.250KR
