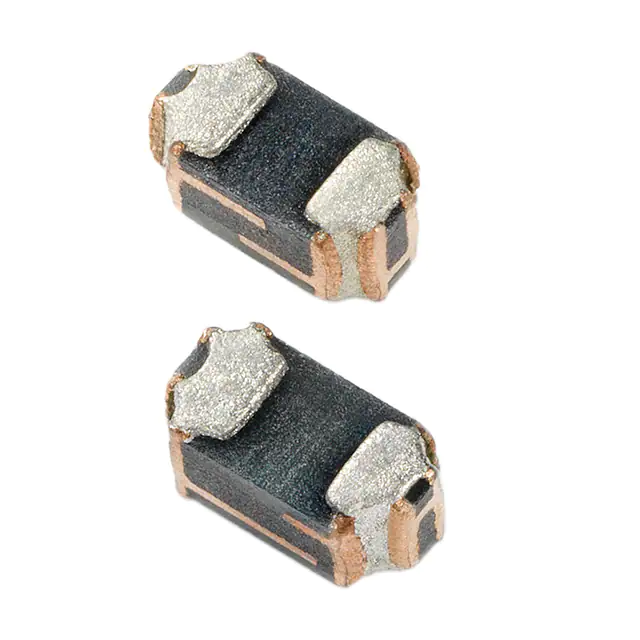

| Part Number | 0402L050SLKR | 0402L050SLYR | 0402L010SLKR | 0402L020SLKR |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Obsolete | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V | 6V | 6V |
| Current - Max | 50 A | 50 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 500 mA | 500 mA | 100 mA | 200 mA |
| Current - Trip (It) | 1 A | 1 A | 300 mA | 500 mA |
| Time to Trip | 100 ms | 100 ms | 1 s | 1 s |
| Resistance - Initial (Ri) (Min) | 40 mOhms | 40 mOhms | 150 mOhms | 100 mOhms |
| Resistance - Post Trip (R1) (Max) | 400 mOhms | 400 mOhms | 2 Ohms | 1.25 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric), Concave | 0402 (1005 Metric), Concave | 0402 (1005 Metric), Concave | 0402 (1005 Metric), Concave |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Lead Spacing | - | - | - | - |
