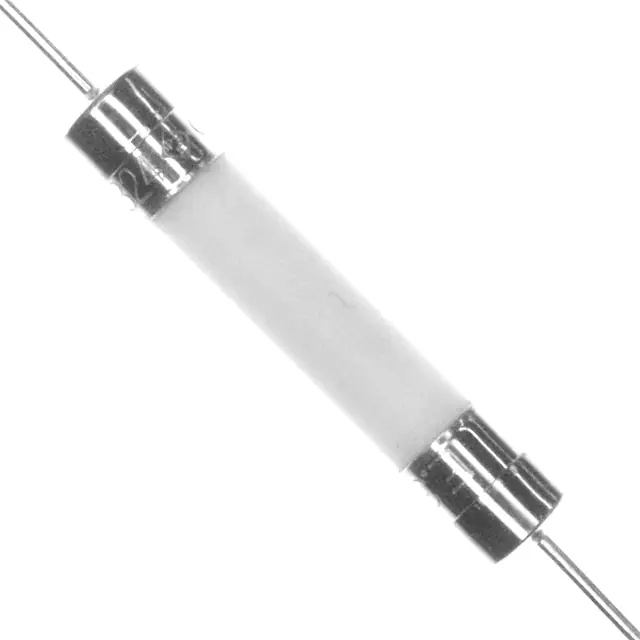

Littelfuse Inc.-0324001.HXP - Fuses Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Fuse Type:	Cartridge, Ceramic
Current Rating (Amps):	1 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	125 V
Response Time:	Fast Blow
Package / Case:	3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage:	100A AC, 10kA DC
Melting I²t:	0.69
Approval Agency:	CE, CSA, PSE, UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.275" Dia x 1.288" L (6.99mm x 32.72mm)

Littelfuse Inc. 0324001.HXP
