Littelfuse Inc.-03152.25MXP - Fuses Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Fuse Type:	Cartridge, Glass
Current Rating (Amps):	2.25 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Response Time:	Slow Blow
Package / Case:	3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage:	100A
Melting I²t:	121
Approval Agency:	CE, CSA, K-MARK, PSE, UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.275" Dia x 1.275" L (6.99mm x 32.39mm)

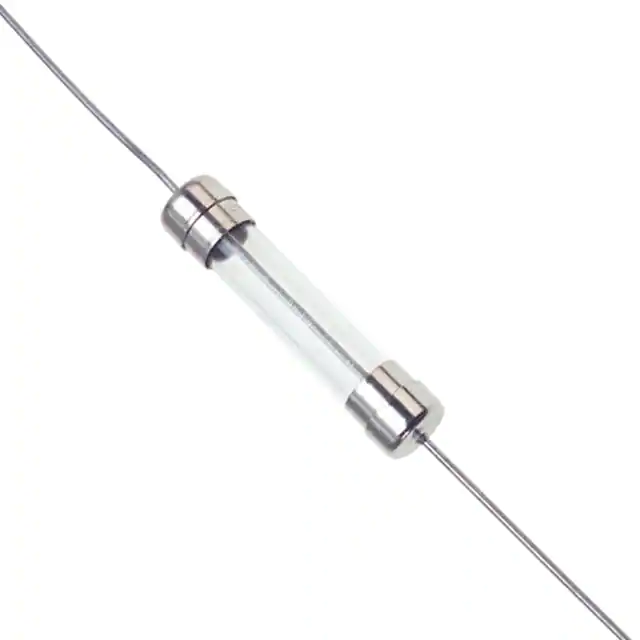

Littelfuse Inc. 03152.25MXP
