Littelfuse Inc.-031301.2MXP - Fuses Product Specifications and Latest Quotes

Mounting Type:	Holder
Fuse Type:	Cartridge, Glass
Current Rating (Amps):	1.2 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Response Time:	Slow Blow
Package / Case:	3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage:	100A
Melting I²t:	21.5
Approval Agency:	CE, CSA, PSE, UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.250" Dia x 1.250" L (6.35mm x 31.75mm)

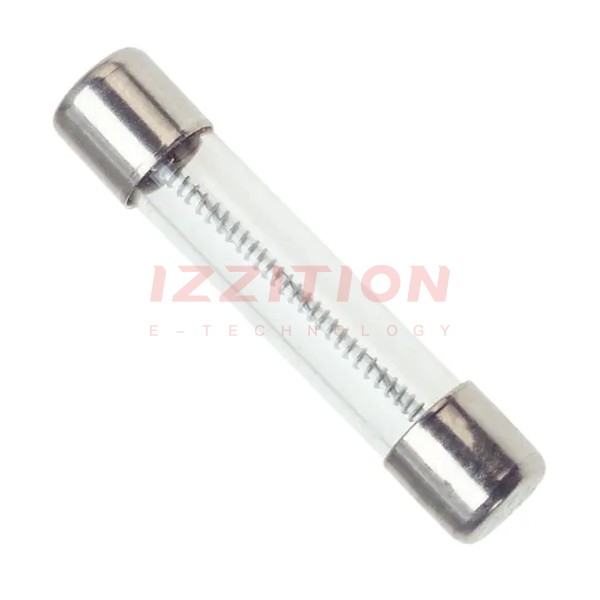

Littelfuse Inc. 031301.2MXP
