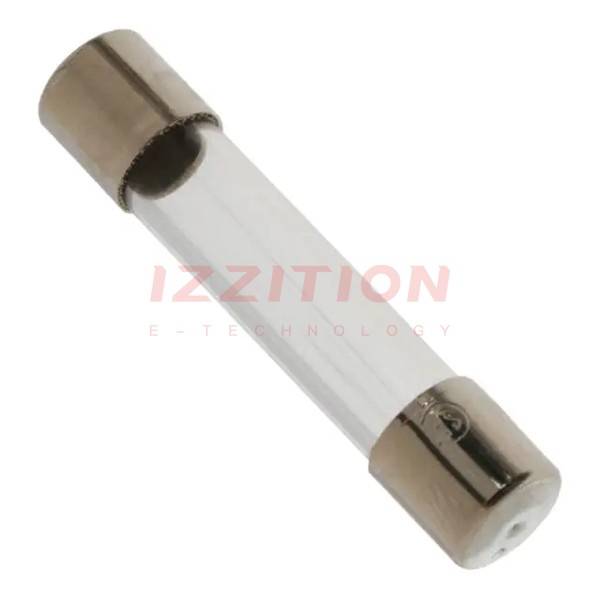

Littelfuse Inc.-0312.375MXP - Fuses Product Specifications and Latest Quotes

Mounting Type:	Holder
Fuse Type:	Cartridge, Glass
Current Rating (Amps):	375 mA
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Response Time:	Fast Blow
Package / Case:	3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage:	35A
Melting I²t:	0.185
Approval Agency:	CE, CSA, UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.250" Dia x 1.250" L (6.35mm x 31.75mm)

Littelfuse Inc. 0312.375MXP
