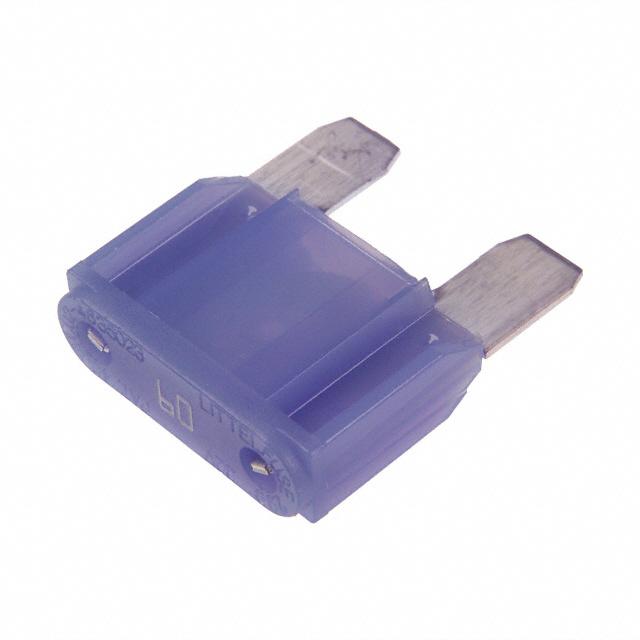

Littelfuse Inc.-0299060.L - Fuses Product Specifications and Latest Quotes

Mounting Type:	Holder
Fuse Type:	Automotive
Current Rating (Amps):	60 A
Voltage Rating - AC:	-
Voltage Rating - DC:	32 V
Response Time:	Slow Blow
Package / Case:	Blade, Max
Breaking Capacity @ Rated Voltage:	1kA
Melting I²t:	15300
Approval Agency:	DIN, ISO, SAE
Operating Temperature:	-40°C ~ 125°C
Color:	Blue
Size / Dimension:	1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm)

Littelfuse Inc. 0299060.L
