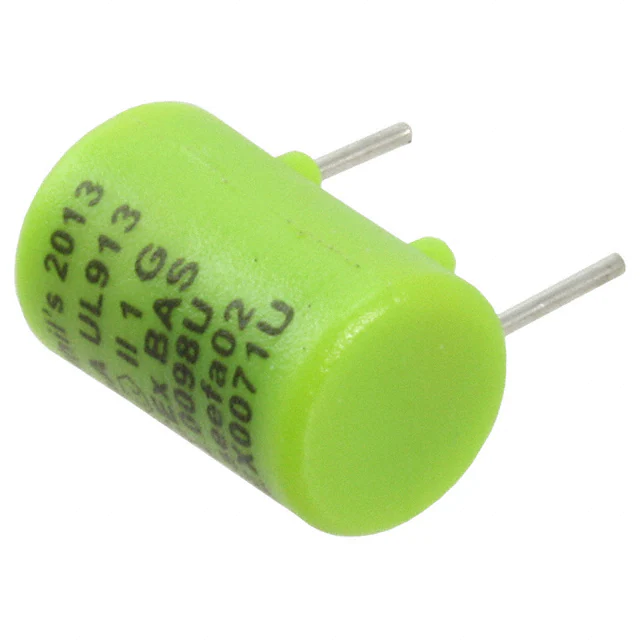

| Part Number | 0259003.MX913 | 0259003.TX913 | 0259005.MX913 | 0259001.MX913 |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Fuse Type | Board Mount | Board Mount | Board Mount | Board Mount |
| Current Rating (Amps) | 3A | 3A | 5A | 1A |
| Voltage Rating - AC | 125 V | 125 V | 125 V | 125 V |
| Voltage Rating - DC | 125 V | 125 V | 63 V | 125 V |
| Response Time | - | - | - | - |
| Applications | Hazardous Locations | Hazardous Locations | Hazardous Locations | Hazardous Locations |
| Features | Intrinsically Safe | Intrinsically Safe | Intrinsically Safe | Intrinsically Safe |
| Class | - | - | - | - |
| Approval Agency | Baseefa, UR | Baseefa, UR | Baseefa, UR | Baseefa, UR |
| Operating Temperature | -55°C ~ 90°C | -55°C ~ 90°C | -55°C ~ 90°C | -55°C ~ 90°C |
| Breaking Capacity @ Rated Voltage | 50A AC, 300A DC | 50A AC, 300A DC | 50A AC, 300A DC | 50A AC, 300A DC |
| Package / Case | Radial, Can, Horizontal | Radial, Can, Horizontal | Radial, Can, Horizontal | Radial, Can, Horizontal |
| Size / Dimension | 0.315" Dia x 0.512" L (8.00mm x 13.00mm) | 0.315" Dia x 0.512" L (8.00mm x 13.00mm) | 0.315" Dia x 0.512" L (8.00mm x 13.00mm) | 0.315" Dia x 0.512" L (8.00mm x 13.00mm) |
