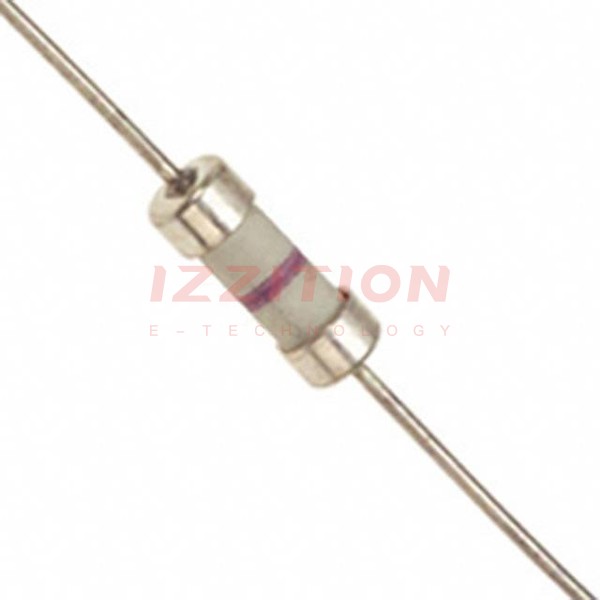

| Part Number | 0242.160UAT1 | 0242.100UAT1 | 0242.160HAT1 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Fuse Type | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 160mA | 100mA | 160mA |
| Voltage Rating - AC | 250 V | 250 V | 250 V |
| Voltage Rating - DC | 250 V | 250 V | 250 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow |
| Applications | Hazardous Locations | Hazardous Locations | Hazardous Locations |
| Features | Intrinsically Safe | Intrinsically Safe | Intrinsically Safe |
| Class | - | - | - |
| Approval Agency | cURus | cURus | cURus |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 4kA | 4kA | 4kA |
| Package / Case | Axial | Axial | Axial |
| Size / Dimension | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) |
