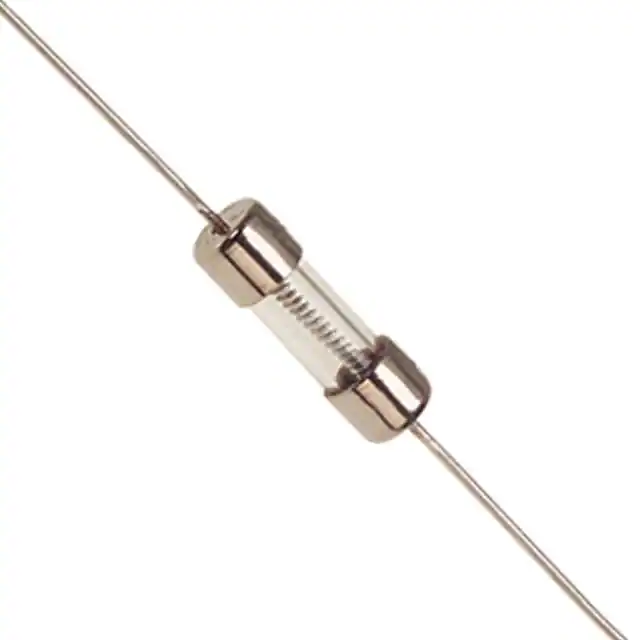

Littelfuse Inc.-0230001.MXSP - Fuses Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Fuse Type:	Cartridge, Glass
Current Rating (Amps):	1 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	125 V
Response Time:	Slow Blow
Package / Case:	Cartridge, Non-Standard (Axial)
Breaking Capacity @ Rated Voltage:	35A AC, 10kA DC
Melting I²t:	5.64
Approval Agency:	CE, CSA, PSE, UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.177" Dia x 0.571" L (4.50mm x 14.50mm)

Littelfuse Inc. 0230001.MXSP
