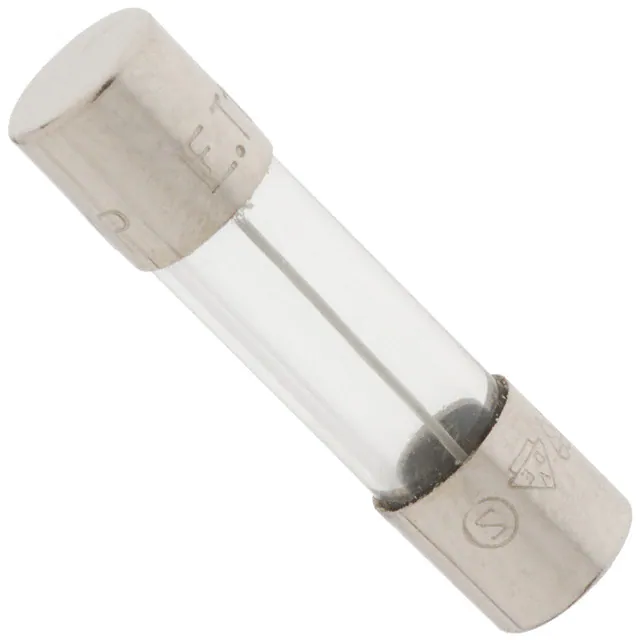

Littelfuse Inc.-0218.050MXP - Fuses Product Specifications and Latest Quotes

Mounting Type:	Holder
Fuse Type:	Cartridge, Glass
Current Rating (Amps):	50 mA
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Response Time:	Slow Blow
Package / Case:	5mm x 20mm
Breaking Capacity @ Rated Voltage:	35A
Melting I²t:	0.00692
Approval Agency:	CCC, CE, CSA, K-MARK, SEMKO, UL, VDE
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.205" Dia x 0.787" L (5.20mm x 20.00mm)

Littelfuse Inc. 0218.050MXP
