Littelfuse Inc.-02163.15MRET1P - Fuses Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Fuse Type:	Cartridge, Ceramic
Current Rating (Amps):	3.15 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Response Time:	Fast Blow
Package / Case:	5mm x 20mm (Axial)
Breaking Capacity @ Rated Voltage:	1.5kA
Melting I²t:	6.7
Approval Agency:	CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.228" Dia x 0.886" L (5.80mm x 22.50mm)

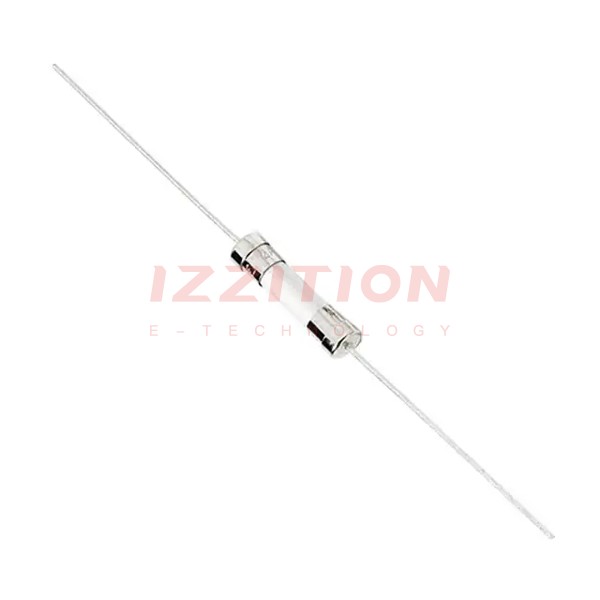

Littelfuse Inc. 02163.15MRET1P
