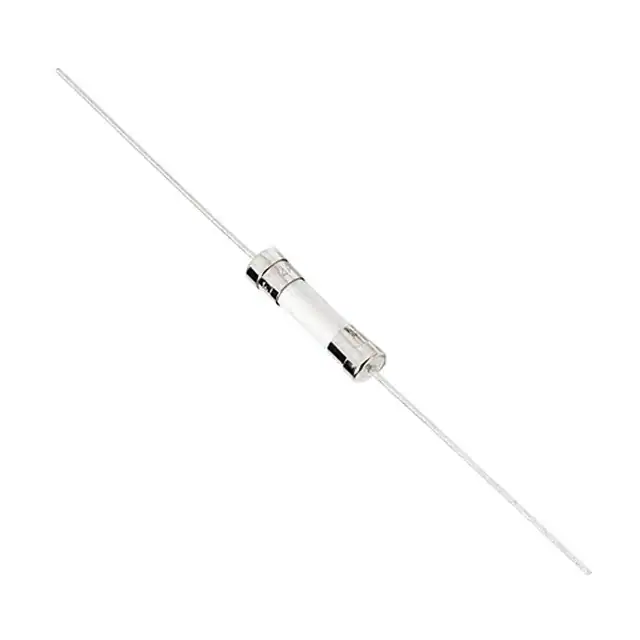

Littelfuse Inc.-0216008.MRET1SPP - Fuses Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Fuse Type:	Cartridge, Ceramic
Current Rating (Amps):	8 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Response Time:	Fast Blow
Package / Case:	5mm x 20mm (Axial)
Breaking Capacity @ Rated Voltage:	1.5kA
Melting I²t:	64.315
Approval Agency:	CE, CSA, KC, PSE, SEMKO, TUV, UR
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.205" Dia x 0.787" L (5.20mm x 20.00mm)

Littelfuse Inc. 0216008.MRET1SPP
